M10

Compact GNSS High-precision Positioning Module

Based on Alice, the automotive-grade GNSS SoC from Bynav, M10 features high-precision measurement engine, navigation engine and functional safety engine and are capable of providnig consistent, real-time and reliable high-precision position in hash environments of signal jamming and GNSS denial, etc.

Specifications and Guides

M10

Compact GNSS Module

It is capable of dealing with harsh environments where satellite signals are interfered or blocked and providing continuous, real-time and reliable high-precision position. Featuring high integration, high performance, low power consumption and small size, the module can be applied to automatic driving, advanced driver assistance, lane-level navigation, drones, intelligent robots, precision agriculture, surveying and mapping, etc.

Request a Quote/Trial

Chat With：

Small Size, Standardized Package, Better Compatibility

Designed for Excellence

Features

• Based on Alice, the high-precision positioning SoC

• Full-constellation and multi-frequency

• Support for modernized signals of BDS-3 and Galileo

• Lower RTK solution delay

• Better performance in handling multi-path, interference and GNSS denial

• Small size and standardized package

Performance Other Specification Documentation

Performance

Model		M10
Horizontal Positioning Accuracy	Single Point	1.5 m (RMS)
Horizontal Positioning Accuracy	RTK	1 cm + 1 ppm (RMS)
Vertical Positioning Accuracy	Single Point	2.5 m (RMS)
Vertical Positioning Accuracy	RTK	1.5 cm + 1 ppm (RMS)
Tracking	BDS-2	B1I, B2I, B3I
	BDS-3	B1I, B1C, B3I, B2a, B2b (PPP)
	GPS	L1 C/A, L1C, L2, L5
	GLO	G1, G2
	GAL	E1, E5a, E5b, E6
	QZSS	L1 C/A, L1C, L2, L5, L6 (CLAS)
	NavIC	L5
	SBAS*	L1 C/A
Observation Accuracy	Carrier Phase	≤1 mm (RMS)
Observation Accuracy	Pseudo-range	≤ 0.1 m (RMS)
First Positioning Time	Cold start	≤ 30 s
First Positioning Time	Hot start	≤ 5 s
Max Transfer Rate	GNSS Observation	10 Hz
Max Transfer Rate	GNSS Position Results*	10 Hz
RTK Initialization		≤ 5 s
Re-acqusition Time		≤ 1s
Timing Accuracy		≤20 ns (RMS)
Velocity Accuracy		0.03m/s (RMS)
RTK Solution Delay		≤ 50 ms
Mechanical and Electrical (M20)	Size (mm)	17.0×22.0×2.75
	Weight (g)	2g
	Power Consumption	500 mW
Operating Temperature*		-40°C ~ +85°C
Storage Temperature*		-40°C ~ +105°C
Humidity		95% Non-condensing
IATF 16949*
ISO 26262 ASIL B*
AEC-Q104*
RoHS

* Optional or refer to datasheet for more information

Model	M10
Power Consumption	470 mW

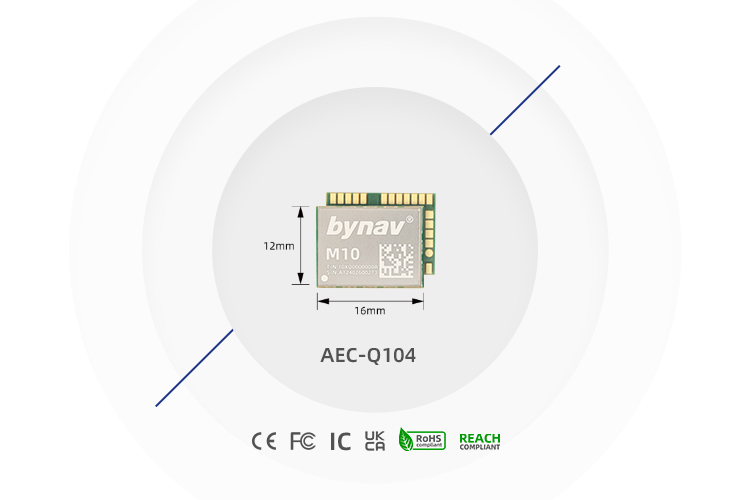

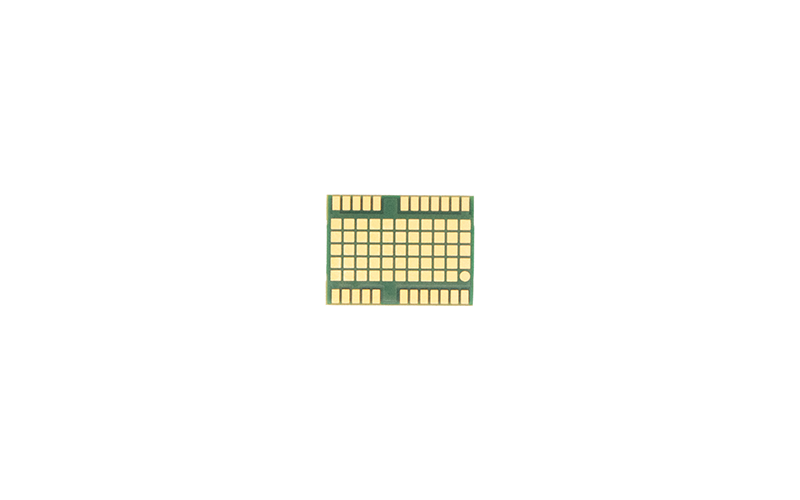

Size	16.0×12.0×1.8 mm
Package	24-Pin LGA
Temperature	Working：-40~+85 ℃（AEC-Q104 Grade 3）
Temperature	Storage：-55~+150 ℃

Documentation

Product Summary

M10_Product Summary

2024.06.20

PDF

785.27KB

Product Manual

Application Guide

AN049_Firmware Update and Authentication

2024.05.17

PDF

1.5MB

Software Download

BY_Connect_Upper computer Software

2022.08.17

ZIP

38.21MB

Enhancing Your Experience

Enclosure & Evaluation Kit

Optimizing Performance for Every Need

Applications

It can provide real-time, continuous and reliable centimeter-level position with results of velocity and attitude. Also, it can be applied to different fields such as autonomous driving, surveying and mapping.

Automatic Driving
Deformation Monitoring

Deformation Monitoring
UAV

UAV
Surveying and Mapping

Surveying and Mapping
UGV

UGV

Ensuring Excellence in Every Step

Mass Production and Quality

Bynav has all-round automotive certificates, sophiscated equipment and fully-automated production lines to ensure mass production capacity as well as reliable and high-quality products.

Automated Production Lines

To ensure the quality and consistency of assembly and testing of boxes and modules.

Automotive Certificates

ISO 26262 ASIL B (Product), ISO 26262 ASIL D (Management) , ISO/SAE 21434, AEC-Q104, AEC-Q100, ASPICE, IATF 16949.

Smart Management Systems

To record key data throughout the entire product life cycle and make every process traceable and manageable.

Experimental Capability

IMU Calibration Center, GNSS Laboratory, Functional Test, Durability/Environmental Test, Optical/Vision Inspection.
