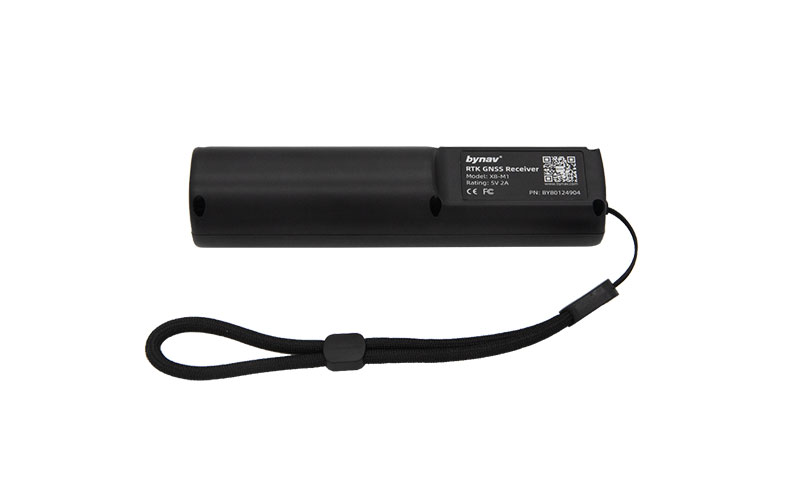

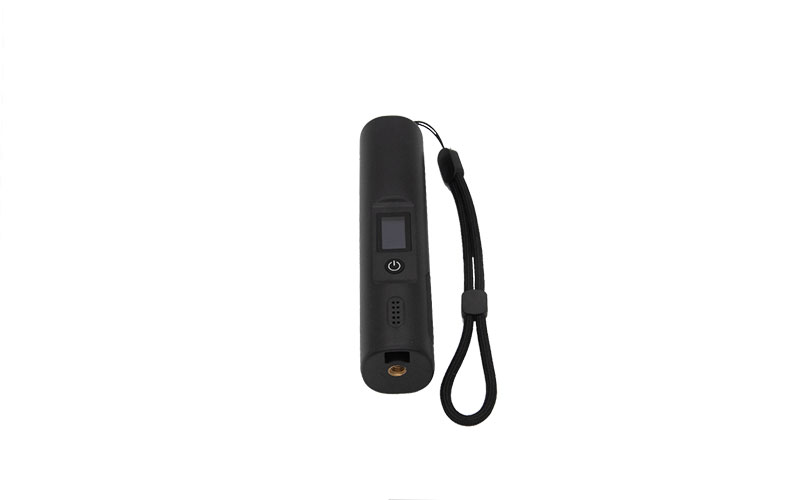

X8-M1

GNSS Portable Positioning Pole

With support for L1, L2 and L5 bands, X8-M1 delivers RTK positions with accuracy of 1cm, featuring a GNSS antenna, Bluetooth, 4G LTE, and a built-in battery. Its ingress protection of IP67 and light weight of 104g expand its use for personnel tracking, vehicle positioning, pinpointing on centering rods and other applications. And it is easy to connect and configure through App and web.



TILT will be avaiable soon！



Specifications and Guides
01
03
02

Portable Positioning Pole

It offers versatile positioning capabilities based on Bynav full-constellation, multi-frequency GNSS positioning module, ensuring all-weather global coverage with high precision and wide applicability.

Request a Quote/Trial
Chat With：

Portable and Easy-to-use Centimeter-level Positioning Solution

What is By Center

What is By Center

• Android  App for X8-M1

• Simple Connection by BT

• Easy Configuration for RTK

• Setup for Mapping/Testing

• Free with X8-M1



Please contact en@bynav.com for the App



Application Case

Application Case

•Web Management Platform with easy-to-use UI

•Instant location tracking with centimeter-level accuracy

Performance Other Specification Documentation
Performance

Model

X8-M1

RTK

Horizontal Accuracy

1 cm + 1 ppm (RMS)

Vertical Accuracy

1.5 cm + 1 ppm (RMS)
TTFF ＜10 s

Initialization Reliability

> 99.9%
Max Transfer Rate 10 Hz

Tracking

BDS-2

B1I, B2I, B3I
BDS-3 B1I, B1C*, B2a, B2b*, B3I

GPS

L1 C/A, L1C, L2, L5

GLO

G1, G2

GAL

E1, E5a, E5b, E6*

QZSS

L1 C/A, L1C, L2, L5,  L6 (CLAS*)

NavIC

L5

SBAS*

L1 C/A

Data Protocol

Correction Data

RTCM 3.3

Output

BYNAV, NMEA 4.11, NMEA 4.10, NMEA 4.0, NMEA 2.3, NMEA 2.1, Json

Wireless

4G Frequencies

X8-M1-CN:

LTE-FDD: B1/B3/B5/B8

LTE-TDD: B34/B38/B39/B40/B41

X8-M1-EU/AS:

FDD: B1/B3/B5/B7/B8/B20/B28

X8-M1-US:

FDD: B2/B4/B5/B12/B13/B66/B71

Bluetooth

BT 5.1 BR/EDR

BLE

 *Optional, specified firmware is required



Model

X8-M1

Physical

 Material

ABS flame retardant plastic

Size

H×W×L: 17.0×22.0×2.75 mm

Weight

104 g

Electrical

Display

LED

Battery

3.7 V / 3300 mAh
Charging Time 4 h
Discharging Time 16 h
Power Supply (Type-C) 5 V / 1 A

Environmental

Operating Temperature

-20~+70°C

Storage Temperature

-30~+80°C

Humidity

 100% Non-condensing
Ingress Protection IP67
Anti-shock Free fall of 1.5 m

Interface

Type-C

SIM

×1

×1
Documentation
Product Manual
Software Download

Enhancing Your Experience

Accessory & Evaluation Kit

Optimizing Performance for Every Need

Applications

Designed for flexibility, the X8-M1 can be used for personnel tracking, vehicle positioning or pinpointing on centering rods. Additionally, it includes features such as electronic fencing, proximity detection for high-voltage power lines, enhancing both safety and operational efficiency.

  • Automatic Driving
    Automatic Driving
  • UGV
    UGV
    UGV
  • UAV
    UAV
    UAV
  • USV
    USV
    USV
  • Surveying and Mapping
    Surveying and Mapping
    Surveying and Mapping

Ensuring Excellence in Every Step

Mass Production and Quality

Bynav has all-round automotive certificates, sophiscated equipment and fully-automated production lines to ensure mass production capacity as well as reliable and high-quality products.

Portable Positioning Pole

Automated Production Lines

To ensure the quality and consistency of assembly and testing of boxes and modules.



Automotive Certificates

ISO 26262 ASIL B (Product), ISO 26262 ASIL D (Management) , ISO/SAE 21434, AEC-Q104, AEC-Q100, ASPICE, IATF 16949.



Smart Management Systems

To record key data throughout the entire product life cycle and make every process traceable and manageable.



Experimental Capability

IMU Calibration Center, GNSS Laboratory, Functional Test, Durability/Environmental Test, Optical/Vision Inspection.
