GNSS High-precision Positioning and Heading Module

Based on Bynav GNSS Baseband ASIC Alita and RFIC Ripley and embedded with Bynav's new generation REAL (Ransac Enhanced Advanced Location) engine, C1 is capable of providing full-constellation and multi-frequency RTK positioning and dual-antenna heading to further optimize the stability of positioning and heading under dynamic conditions.








Specifications and Guides
03
02

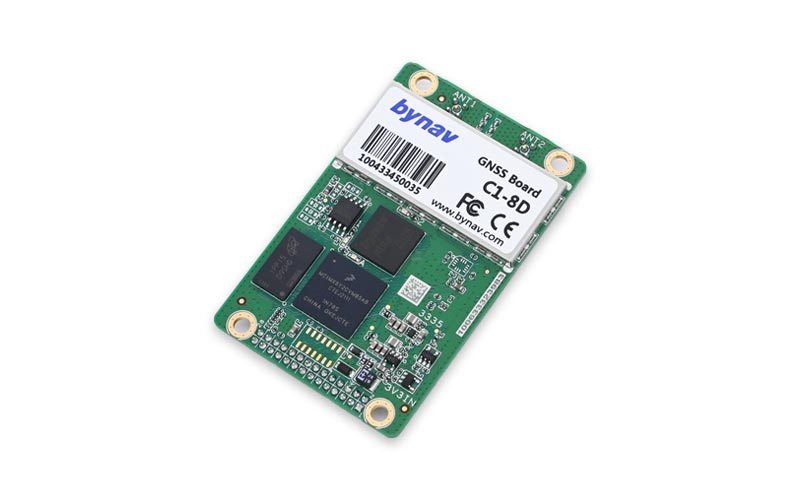

GNSS Board

C1 can quickly calculate the accurate relative position of antennas and the deviation angle from True North to the line connecting the phase center of two antennas, which is expressed as Heading. Meanwhile, real-time carrier phase differential positioning (RTK) provides centimeter-level high-precision position by receiving correction data from base station.

Request a Quote/Trial
Chat With：

Better Dynamic Performance Against Signal Blockage

Watch the video
Features

Features

- Based on Bynav GNSS Baseband ASIC Alita and RFIC Ripley.
- Support full-constellation, full-frequency RTK positioning and dual-antenna heading.
- Support modern signal systems such as BDS-3 and Galileo.
- Enhanced connection options including serial, CAN and Ethernet.
- Support GNSS/INS deeply coupled algorithm, raw data output and post processing.
- Optimal performance in multipath mitigation, anti-interference and anti-blockage.
- Compact size and low power consumption.

Performance Other Specification Optional accessories Documentation
Performance

GNSS

C1-8D

C1-FD

Functions

Description

8-frequency Dual-ant

Full-frequency Dual-ant

Dual-Antenna Heading

●

●

Single Point Positioning

●

●

RTK

●

●

Timing

●

●

Reference Station Mode

●

●

Rover Station Mode

●

●

Built-in Deformation Monitoring

●

●

Output of Dual-Antenna
Raw Observations

●

●

NTRIP

●

●

Signal Frequency

GPS

L1C/A, L1C*, L2

L1C/A, L1C, L2, L5

GLONASS

G1，G2

G1，G2

BDS

B1I，B2I

B1I，B2I, B3I*

BDS-3

B1I, B1C*, B2a, B2b*

B1I, B1C*，B2a, B2b*, B3I*

GALILEO

E1, E5b, E5a*

E1, E5b, E5a*

QZSS

L1C/A, L1C, L2

L1C/A, L1C，L2，L5

NavIC

-

L5

SBAS

-

L1C/A

Measurement Accuracy

Carrier Phase

≤1 mm (RMS)

Pseudorange

L1C/A,L2,G1,G2

≤ 0.12 m (RMS)

Other signals

≤ 0.06 m (RMS)

Single Point Accuracy

Horizontal

1.5 m (RMS)

Vertical

2.5 m (RMS)

RTK Accuracy

Horizontal

1.0 cm +  1 ppm (RMS)

Vertical

1.5 cm + 1 ppm (RMS)

Heading Accuracy

0.2 °/m (RMS)

0.2 °/m (RMS)

Timing Accuracy

20 ns (RMS)

Velocity Measurement Accuracy

0.05 m/s (RMS)

Maximum Data Rate

Raw Data

5 Hz

10 Hz

RTK

5 Hz

10 Hz

RTK+Heading

5 Hz

10 Hz

Time to First Fix

Cold Start

≤45 s

Warm Start

≤30 s

Model

C1-8D

C1-FD

Physical Specification

Size

71×46×11 mm

Weight

20 g

ElectricalSpecification

Power Consumption (Typical)

1.8 W

1.9 W

Rated Voltage

+3.25～+3.45 V
Name Parameter

Development Kit (EVK)

With 4Pin extension cable

Radiator

Board radiator

Thermal Conductive Silicone Pad

20MM*20MM*3MM

Power Adapter

220V to 12V/5A - 5.5MM*2.1MM interface

Reference Station Radio-1

A 25W transmitter, a radio antenna (L) QC450A, a suction cup base, and a serial crossover cable

Rover Station Radio-1

A 1.5W transceiver, a radio antenna (M) QC400SI, and a serial crossover cable

Reference Station Radio-2

A 5W transmitter, 1 radio antenna (L), and 1 serial crossover cable

Rover Station Radio-2

1 rover receiver, 1 radio antenna (M), and 1 serial crossover cable

GNSS Geodetic Antenna

Multi-satellite Multi-frequency

Suction Cup Bracket

small size, strong suction

RF Cable

TNC-J to TNC-J-10M, Straight

RF Cable

TNC-J to TNC-J-5M, Straight

RF Adapter

TNC-K to MMCX-JW-25CM, Elbow

RF Adapter

TNC-K to MMCX-JW-15CM, Elbow

RF Adapter

TNC-K to MMCX-J-13CM, Straight
Documentation
Product Summary
Product Manual
Application Guide
Software Download

Enhancing Your Experience

Enclosure & Evaluation Kit

Optimizing Performance for Every Need

Applications

It can be widely used in surveying, mapping, autonomous driving, unmanned systems (UAV, UAS etc.), driver license testing, digital construction, precision agriculture, deformation monitoring, industrial automation control and many other fields.

  • Driving Test
    Driving Test
  • Surveying and Mapping
    Surveying and Mapping
    Surveying and Mapping
  • Precision Agriculture
    Precision Agriculture
    Precision Agriculture
  • Deformation Monitoring
    Deformation Monitoring
    Deformation Monitoring
  • Digital Construction
    Digital Construction
    Digital Construction

Ensuring Excellence in Every Step

Mass Production and Quality

Bynav has all-round automotive certificates, sophiscated equipment and fully-automated production lines to ensure mass production capacity as well as reliable and high-quality products.

GNSS Board

Automated Production Lines

To ensure the quality and consistency of assembly and testing of boxes and modules.



Automotive Certificates

ISO 26262 ASIL B (Product), ISO 26262 ASIL D (Management) , ISO/SAE 21434, AEC-Q104, AEC-Q100, ASPICE, IATF 16949.



Smart Management Systems

To record key data throughout the entire product life cycle and make every process traceable and manageable.



Experimental Capability

IMU Calibration Center, GNSS Laboratory, Functional Test, Durability/Environmental Test, Optical/Vision Inspection.
