T1/T2 Series

GNSS High-precision Positioning and Heading Box

T1/T2 series are based on Bynav GNSS Baseband ASIC Alita and RFIC Ripley and embedded with Bynav's new generation REAL (Ransac Enhanced Advanced Location) engine. With support for full-constellation and full-frequency, T1/T2 series are capable of providing RTK positioning and dual-antenna heading.






Specifications and Guides

GNSS/INS Positioning Box

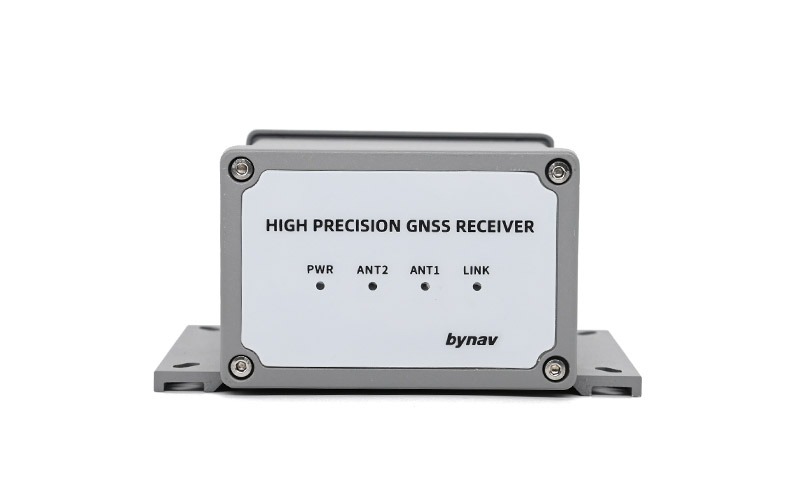

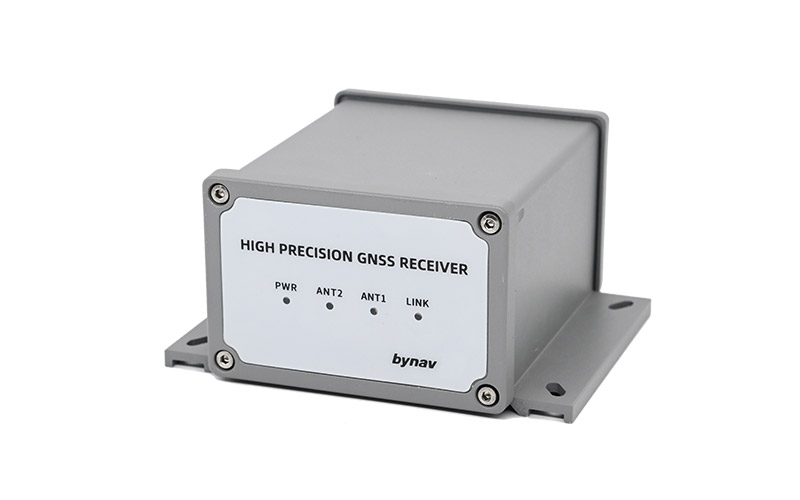

T1 GNSS high-precision positioning and heading receiver is built-in C1 GNSS board, the rugged housing is plug-and-play and made of high-quality aluminum alloy, widely used in driver license testing, autonomous driving, precision agriculture, surveying and mapping, deformation monitoring, UAV, robotics and other fields.



Optimal performance in dynamic multipath mitigation,

anti-blockge and anti-inteference

Features

Features

- Based on Bynav GNSS Baseband ASIC Alita and RFIC Ripley.
- Support full-constellation, full-frequency RTK positioning and dual-antenna heading.
- Support modern signal systems such as BDS-3 and Galileo.
- Enhanced connection options including serial, CAN and Ethernet.
- Support on-board SD card to back-up local data.
- Extra low latency
- Optimal performance in multipath mitigation, anti-interference and anti-blockage.
- 9~36V wide voltage input, overcurrent and reverse connection protection

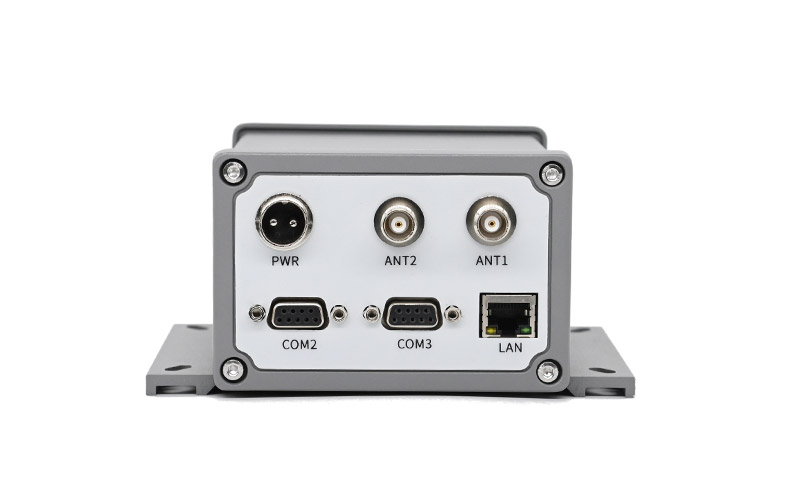

- Two RS232 serial ports and one RJ45 Ethernet port

REAL Positioning Engine

REAL Positioning Engine

The RANSAC (Random Sample Consensus) based autonomous integrity monitoring algorithm is integrated for the observation anomalies caused by multipath and interference in urban environments. It can monitor pseudo-range, carrier phase, and Doppler observations in real-time and accurately eliminated the faulty satellites, thus achieving more stable positioning results.

Epoch Differential Smoothing Technology

Epoch Differential Smoothing Technology

The movement of the user is calculated by using the carrier phase difference between the adjacent epochs, performs fusion filtering with the RTK positioning result to have a smoother solution. all the tracked satellites of the rover are fully used in the solution when the base station satellite is blocked, and the smooth positioning result can still be maintained when the RTCM correction data is interrupted for a long time.

Carrier Half-Cycle Ambiguity Repair Technology

Carrier Half-Cycle Ambiguity Repair Technology

In the urban dynamic environment, the loss of lock and re-tracking of the carrier phase are frequent. After re-tracking, the frame synchronization (Frame Sync) is needed to eliminate the half-cycle ambiguity and then used for the RTK integer ambiguity solution. Bynav receiver integrates carrier half-cycle ambiguity repair technology based on navigation message prediction and matching (patent authorized), which quickly eliminates half-cycle ambiguity, thus improving satellite availability, and effectively shorten the recovery time.

Performance

GNSS

T1-8D

T1-FD

Functions

Dual-Antenna Heading

Single Point Positioning

RTK

Timing

Reference Station Mode

Rover Station Mode

Output of Dual-Antenna
Raw Observations

NTRIP

Signal Frequency

GPS

L1C/A, L1C, L2

L1C/A, L1C, L2, L5

GLONASS

G1,G2

BDS

B1I,B2I

B1I,B2I, B3I*

BDS-3

B1I, B1C, B2a, B2b*

B1I, B1C*, B2a, B2b, B3I*

GALILEO

E1, E5b, E5a*

E1, E5b, E5a*

QZSS

L1C/A, L1C*, L2C

L1C/A, L1C, L2 ,L5

IRNSS

-

L5

SBAS

-

L1C/A

Measurement Accuracy

Carrier Phase

≤1mm (RMS)

Pseudorange

L1CA,L2C,L2P,G1,G2

≤ 0.12m (RMS)

Other signals

≤ 0.06m (RMS)

Single Point Accuracy

Horizontal

1.5m (RMS)

Vertical

2.5m (RMS)

RTK Accuracy

Horizontal

1.0cm + 1ppm (RMS)

Vertical

1.5cm + 1ppm (RMS)

Heading Accuracy

0.2°/m (RMS)

0.2°/m (RMS)

Timing Accuracy

20ns (RMS)

Velocity Measurement Accuracy

0.03m/s (RMS)

Maximum Data Rate

Raw Data

5Hz

10Hz

RTK

5Hz

10Hz

RTK+Heading

5Hz

10Hz

* Optional or designated firmware is required

Model

T1-8D

T1-FD

Voltage

DC 9~35 V

Power consumption

2.53 W

2.53 W

Current

0.31 A

0.31 A

Communication port

RS232 x2, RJ45 x1

RF port

 GNSS Antenna connector x2 (TNC-K)

Size

135×152×73 mm (with earing)

Material

Aluminum

Weight

1.3 kg (without accessary)

Operating temperature

-40℃~ +85℃

Storage temperature

-55℃~ +95℃

Optimizing Performance for Every Need

Applications

Our receivers can be widely used in surveying, mapping, autonomous driving, unmanned systems (UAVs, UAS etc.), driver license testing, digital construction, precision agriculture, deformation monitoring, industrial automation control and many other fields.

  • Automatic Driving
    Automatic Driving
  • Surveying and Mapping
    Surveying and Mapping
    Surveying and Mapping
  • Precision Agriculture
    Precision Agriculture
    Precision Agriculture
  • Driving Test
    Driving Test
    Driving Test
  • Digital Construction
    Digital Construction
    Digital Construction

Ensuring Excellence in Every Step

Mass Production and Quality

Bynav has all-round automotive certificates, sophiscated equipment and fully-automated production lines to ensure mass production capacity as well as reliable and high-quality products.

GNSS/INS Positioning Box

Automated Production Lines

To ensure the quality and consistency of assembly and testing of boxes and modules.



Automotive Certificates

ISO 26262 ASIL B (Product), ISO 26262 ASIL D (Management) , ISO/SAE 21434, AEC-Q104, AEC-Q100, ASPICE, IATF 16949.



Smart Management Systems

To record key data throughout the entire product life cycle and make every process traceable and manageable.



Experimental Capability

IMU Calibration Center, GNSS Laboratory, Functional Test, Durability/Environmental Test, Optical/Vision Inspection.
